KILN SPECIFICATIONS

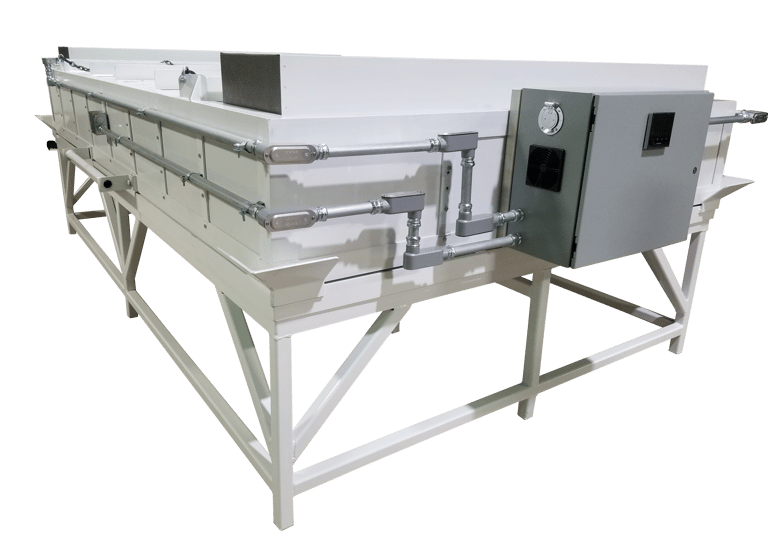

Thermal Glass Fusing Kiln GV-147-89-14.5

The GlassVision GV-147-89-14.5 is an industrial thermal fusing kiln designed and programmed to thermally bond multiple layers of float glass together. The kiln can also cast texture to single or multiple layers of glass. These kilns can be used to make glass countertops, architectural glass, decorative glass, glass art, privacy glass, and custom glass.

KILN CONFIGURATION

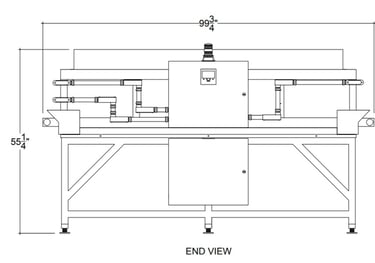

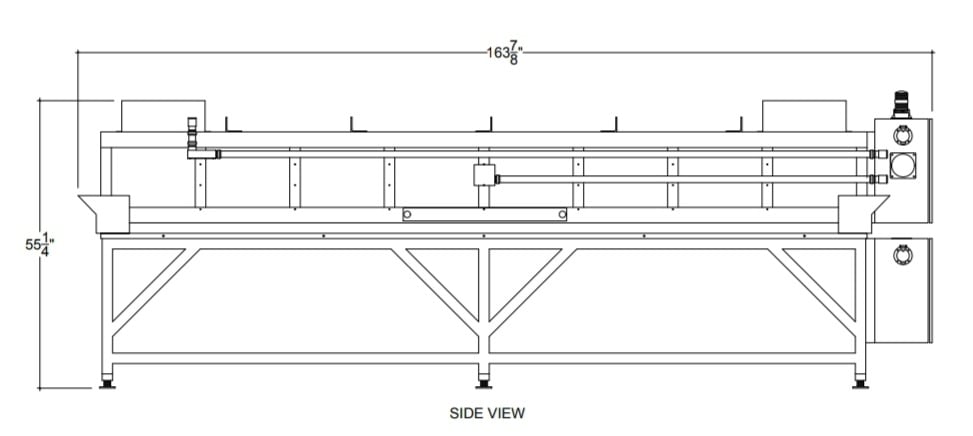

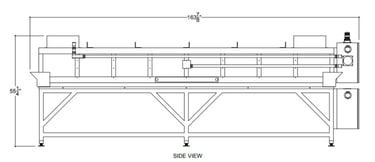

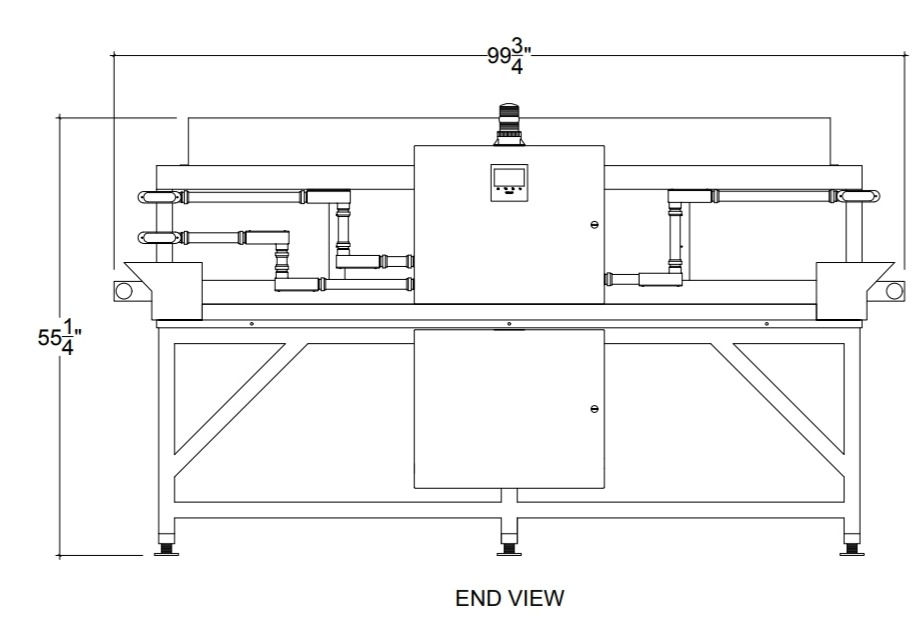

POWER REQUIREMENT Three (3) 60A 208V 3-phase circuits/kiln INTERNAL TEMPERATURE RANGE: 40°F to 1,400°F (4°C to 760°C) EXTERNAL TEMPERATURE RANGE: 40°F to 160°F (4°C to 71°C) LENGTH: 163 7/8” (416 cm) WIDTH: 99 ¾” (253 cm) HEIGHT: 55 ¼” (140 cm) TOTAL WEIGHT: 5,845 lbs. (2,651 kg) LID WEIGHT: 2,095 lbs. (950 kg) BASE WEIGHT: 3,750 lbs. (1,701 kg)
